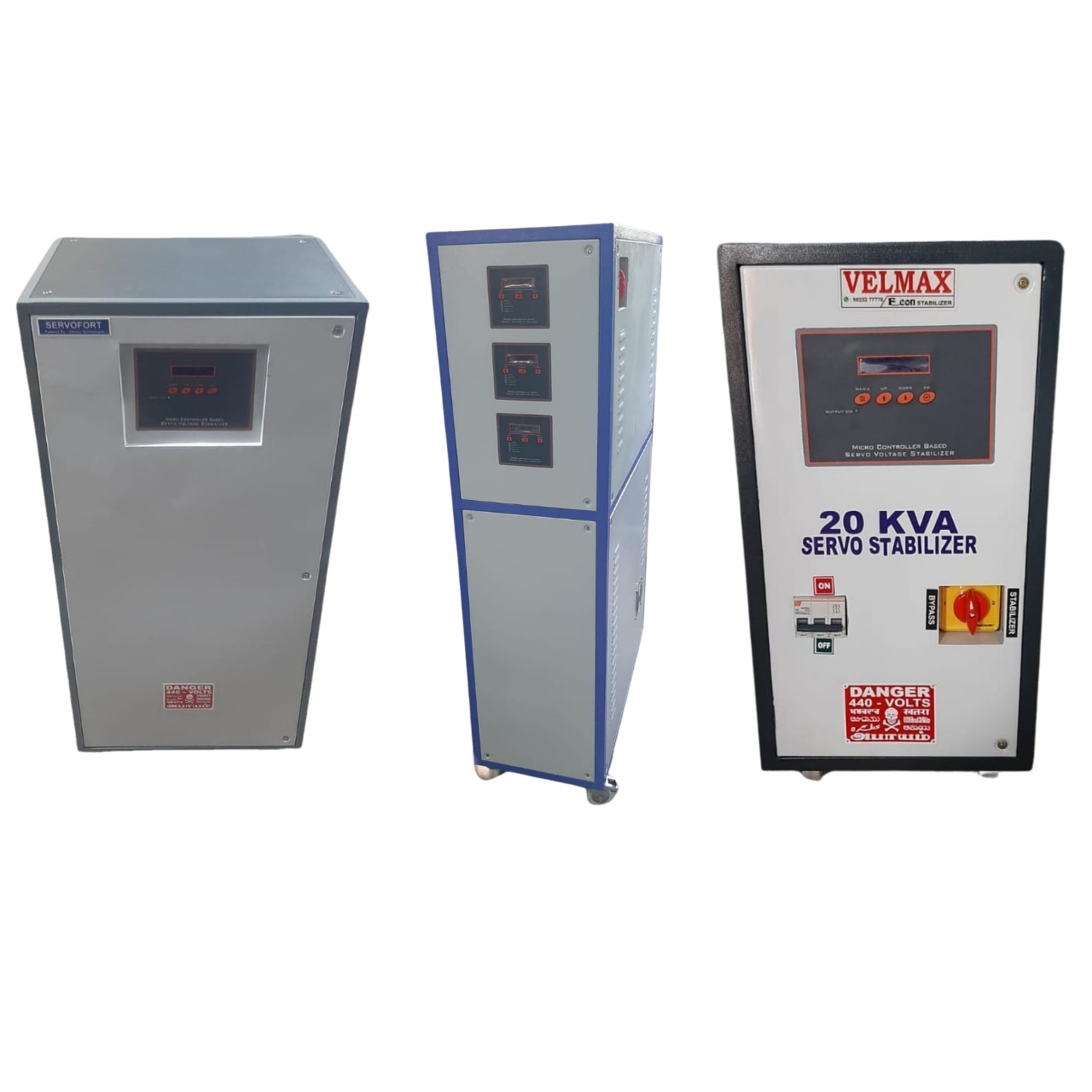

An automatic Servo voltage Stabilizer is an electrical device designed to maintain a stable voltage level for various electrical equipment. Here is the description for a 1-phase, 4KVA, 230V, 140V-270V automatic Servo voltage Stabilizer available.
Contact NowAvailable Capacity - 1 to 500 KVA.
Input Voltage Range - 170-270 Normal/140-270 wide for 1 single phase. 295-465 Normal/240-465 wide for 3 phase.
Output Voltage Range - 230+ 1% for single phase/400+ 1% for 3 phase 370 to 415 V settable.
Frequency - 47 to 56 Hz.
Control Circuit - Micro Controller based.
Waveform - As per reproduction of input wave.
Efficiency - Above 95% at full load.
Nature of Cooling - Nature cooling/Forced Air Cooling/Oil Cooling.
Ambient Temperature - 50°C Maximum.
Metering - Single LCD display the following parameters. (a) Input Voltage (b) Output Voltage (c) Frequency
Protections - Overload protections by means of MCB. Electronic cut-offs for over/under voltage, Output through contractor & manual bypass switch above 7.5 KVA.
Correction Rate - 45 V/Sec upto 45 kVA (3 Phase).
Enclosure - Input, Output & Cut-off.
Indications - Powder coated MS Cabinet Mounted on castor wheels.
Computers | C.N.C Machines | Medical Equipments | Communication Equipments | Textile Equipments | Audio & Video Systems | Xerox Machines | Airconditioners
