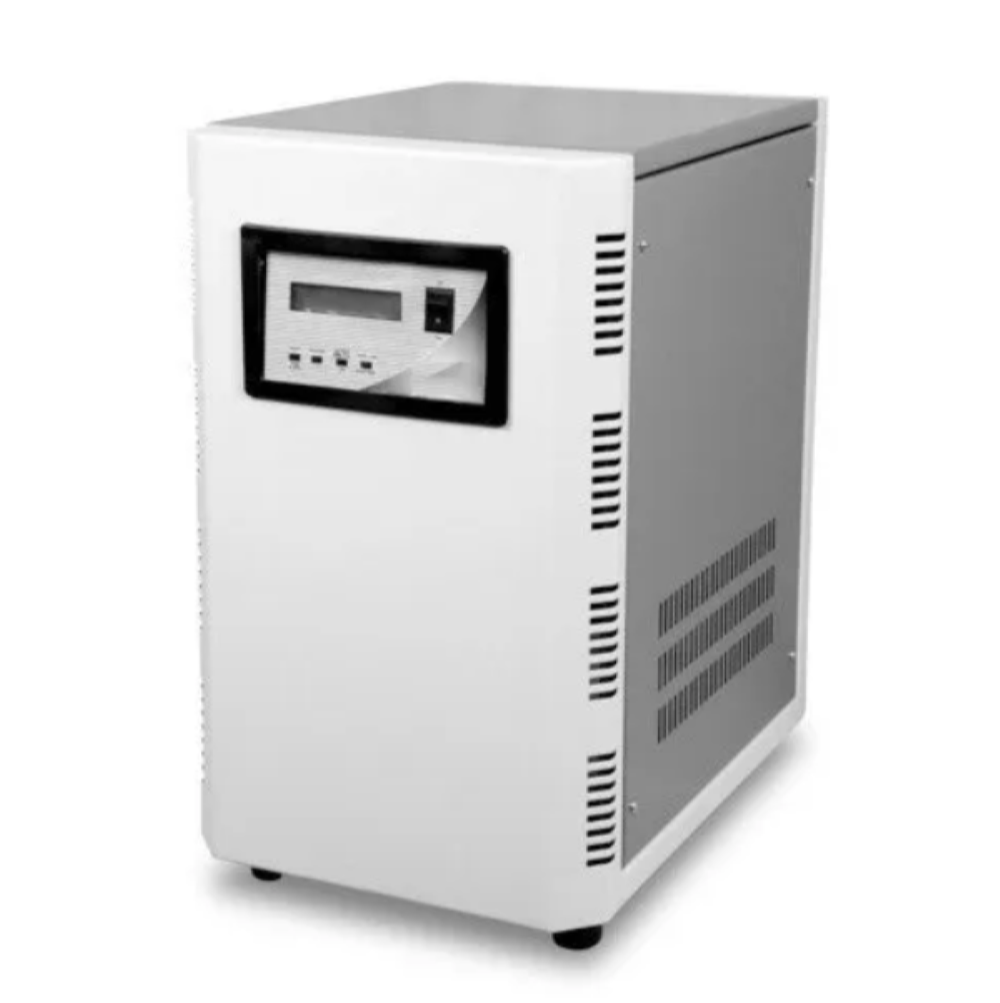

The Online UPS E2-1KVA 24V Pure Sinewave with in-built batteries is a reliable and efficient uninterruptible power supply (UPS) system designed to provide continuous and clean power to critical electronic devices. It is ideal for use in both home and office environments to protect sensitive equipment from power disruptions.
Contact NowAvailable Capacities - 1,2,3,4,5,6,7.5,10,15,20,25,35,40,50 KVA - 500 KVA
INPUT
Voltage Range : 170-260 VAC 3 Wire & 310-480 VAC 4 Wire
Frequency : 50Hz + 5%
Power Factor : 0.9
Efficiency : 90%
OUTPUT
Voltage : 1230 ± 1% or 400 ± 1% for 3Ø
Voltage Regulation : 0.5%
Frequency : 50 Hz ± 0.5%
Technology : High Frequency PWM Using IGBT
Waveform : Sine Wave
Load Power Factor : 0.8 lag to unity
Efficiency : 92%
Harmonic Distortion : < 5% on linear load
Crest Factor handling : 3:1
BATTERY
Battery Bus Voltage : 72/96/120/180/192/ 240/300/360
Type : SMF/Tubular/Semi-MF
Backup Duration : As per requirement
Re-charge Time : 5-6 Hrs to 90%
INDICATIONS
* Charger On * UPS On * Charger Trip * Battery Low * Output High, Overload
METERING
* Output AC * Input AC * Input & Output frequency * DC volts with single LCD Display * O/P Controlled by manual by pass switch
OPTIONAL ACCESSORIES
Battry Stand, Battery enclosure
ENVIRONMENT
Ambient Temperature : 0 to 40° C
Humidity : 90% RH non-condensing
Audiable noise : 45 db (A) at 1.5 m
GENERAL
Cooling : Forced air
Mobility : Caster Wheels
Cabinet : Free standing, Power coated, front access for installation and Maintenance, Cable entry at bottom
PROTECTION
Electronic tripping in the event of over/under voltage, over load and battery low. Protection against short circuit and battery reverse polarity. Electronic current limiting. HRC fuses adn MCB's are also provided at both input and output ends. -->
